HOLEY ROLLER handlebars & cable kit for 1996-2017 DYNA WIDEGLIDE(FXDWG)

Road 6 Customs Holey Roller APE HANGERS

And Complete Handlebar Installation kit!

Single front disc!

The handlebars in these kits are all 1" diameter. Please check your application before purchasing. If you need 1 1/4" we can make them to order but there will be additional cost.

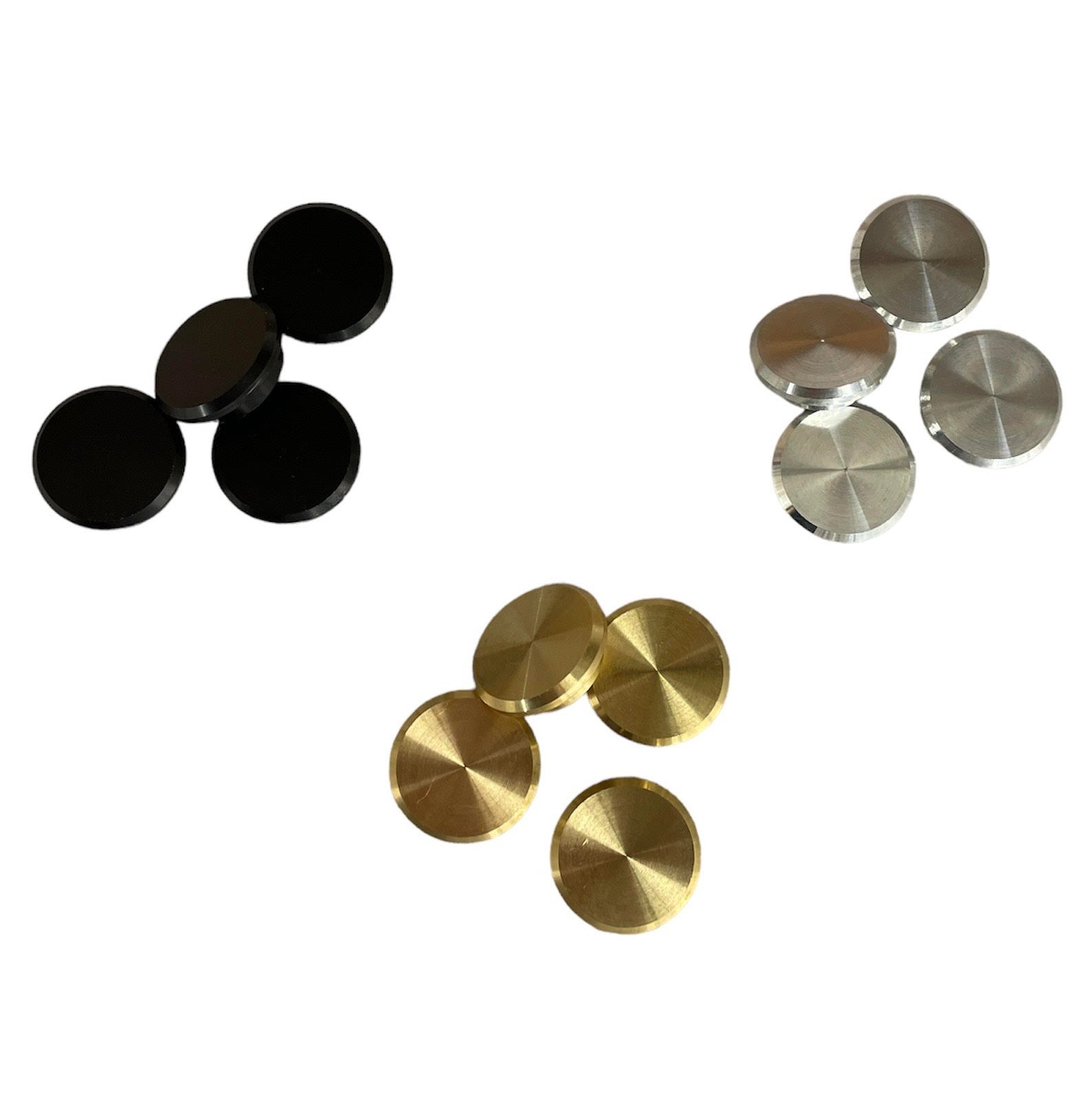

Now with Removable End Caps for Easier Internal wiring!

1" fits ALL HARLEY controls and late model metrics with 1" diameter handle bars.

IT IS UP TO YOU TO MAKE SURE YOU ORDER THE CORRECT BARS!

If you need something custom made, let us know, we will be glad to help!

SPECS:

6.5" PULL BACK

33" TIP TO TIP

Bottom tube width is 11.5"

KNURLED ON 3.5" CENTERS FOR HARLEYS

We also make these bars in 1 1/4" diameter. They are made to order. Please let us know when ordering the 1 1/4" diameter bars if you need the bottom tube to be 1 1/4" all the way across or if you need it down to 1" for the risers. Some models have risers for 1 1/4" diameter bars and some for 1" diameter bars.

What are knurls? Knurls are a swelled diamond cut pattern on the bottom tube where the bars clamp onto your bike, that keeps them from rotating under acceleration. THIS IS A MUST ON APE HANGERS! Beware of tall handle bars offered without knurls! Our bars WILL NOT slip or rotate in your clamps!

All of our 1" bars are ready for internal wiring. We machine the grooves in the bars to work with your factory controls! Your Factory Harley switch housing must be used on "dimpled" bars or there is no way for the switch wiring to exit the switch housings. Our 1" bars are made to work with either internal or external wiring! If you buy a set of bars that are not dimpled, you will be disappointed.

For those of you using custom controls where no wiring on the bars is required.... we CAN make you a set with no dimpling upon request.

ATTENTION! Other countries will cost more to ship! APO/FPO addresses also will cost more to ship! Ask about shipping quotes to your area.

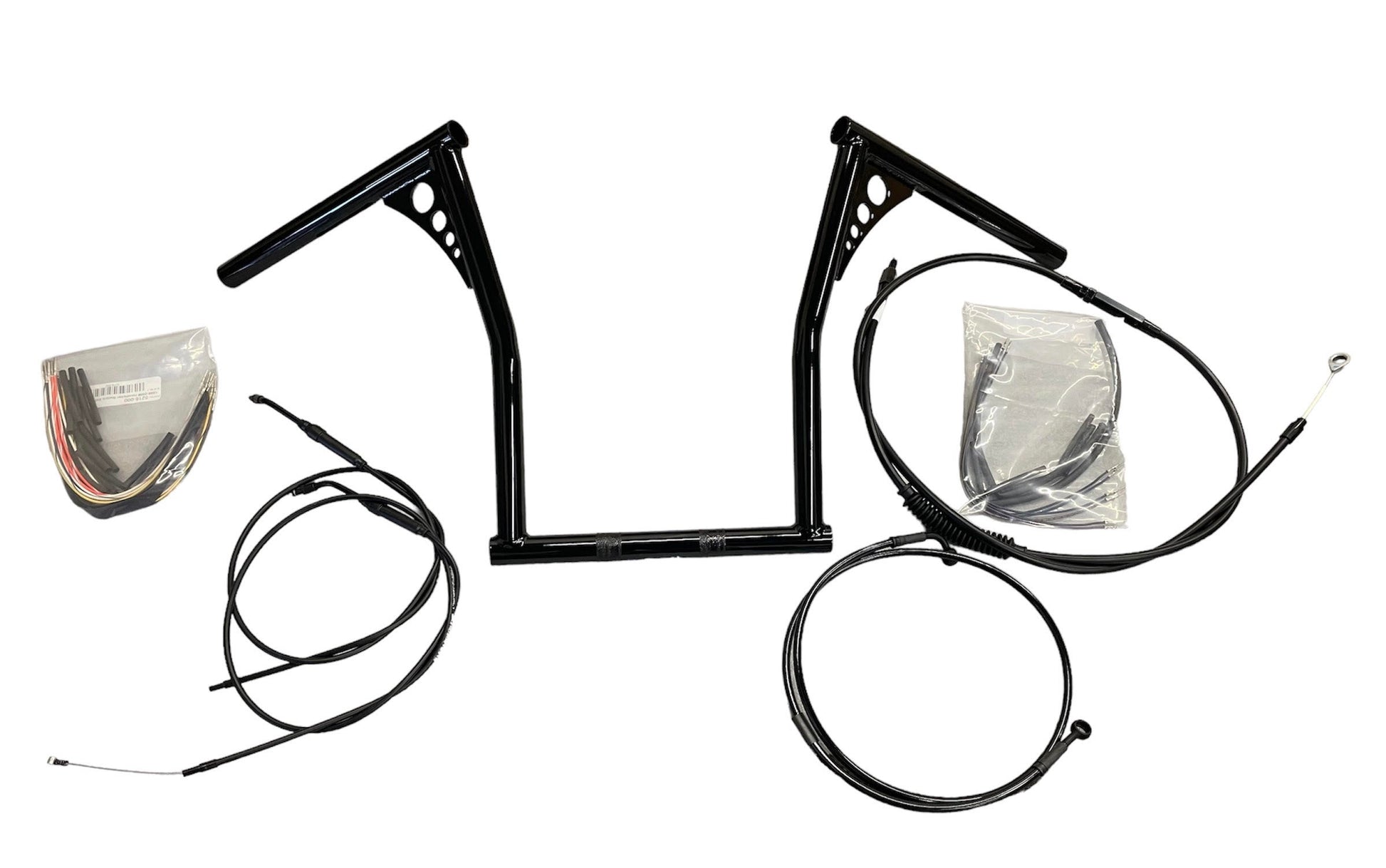

Cable kit includes single front brake line, clutch cable, throttle & idle cables and wire extension harness.

Photos may be generic depending on your motorcycles options
