82-03 XL Sportster Weld On Hardtail 130/150 TIRE COMPLETE KIT

82-03 XL Sportster Weld On Hardtail 130/150 TIRE COMPLETE KIT

Regular price $659.99 USD
Regular price Sale price $659.99 USD
Sale Sold out
Shipping calculated at checkout.

82-03 Harley Sportster Hardtail

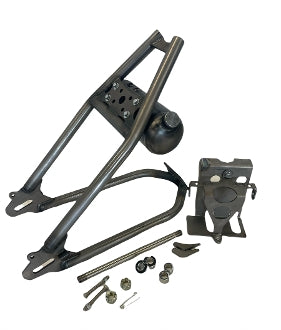

(Includes: Hardtail, Oil Tank,Battery Box, and Axle)

Complete Kit



Frame stretch 2 1/2"

Approximately 4" of ground clearance depending on what tire you use.


We have put together a complete kit for you that includes a lot of the parts you will need for your hardtail conversion project.

All of these parts are made by us, right here in the United States!

Kit Includes:

Hardtail Frame- Our frames are made from 1 1/4" D.O.M. tubing, tig welded and are extremely easy to install.


Our kit uses the lower two transmission bolts to line up the frame on the bottom and welds to the top AND the bottom. Cheap Chinese made kits weld only to the top and rely on only the transmission bolts to hold the bottom in place. Our kit has gussets pre-fit and welded to the hardtail section so you can weld it to the bottom of your frame as well as the top.  All of the tubing and axle plates are TIG welded.

Oil Tank- We build our own oil tanks specifically for this frame. It mounts in 3 locations and comes with all of the mounting hardware and bracket pre-welded to the frame.  It has domed end caps on both sides,  return line bungs on the top, feed line bung on the bottom and we added an extra drain bung to the left side for changing oil.  We pressure test the tanks for leaks prior to shipping. The tanks are 100% TIG welded.

Battery Box- We have designed a truly unique battery box for our frames. Our battery box not only gives you a place to mount your battery, but it also covers the original swingarm  pivot point on your original frame as well as the cut off tubes left from cutting your frame, leaving you with a very "finished" appearance. Not to mention, it looks SICK!

Axle- Finally, you are going to need an axle, ours FIT. We make the axle specifically for this frame. It is made from bearing grade stainless steel.

You can literally convert your stock plain Sportster to a chopper or bobber in a weekend with this kit.

Don't settle for a cheap Chinese hunk of crap for your Harley. Your going to spend just as much when you are done. You might as well have a quality part made in the USA.

Please check availability on these frames. They are selling FAST. We generally have them in stock, but they could be up to a week out.

If you are interested in having this frame installed by us, Please call the shop.

The frame stretches the wheel base approximately 2 1/2" and will fit a 130 to 150 tire using your stock pulleys or you can do a chain conversion.  Approximately 4" of ground clearance depending on what tire you use.
